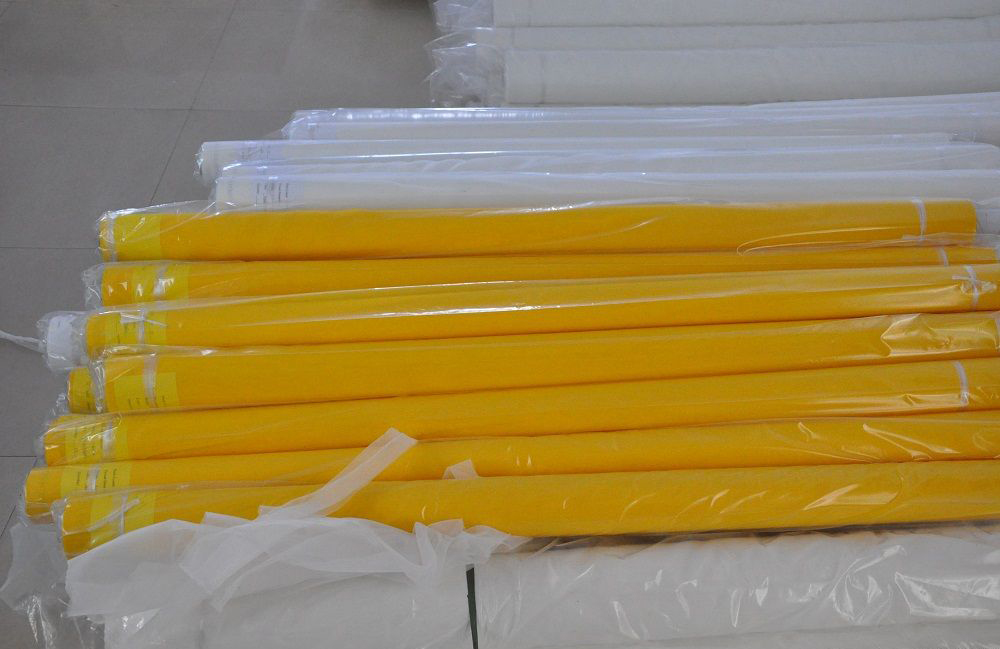

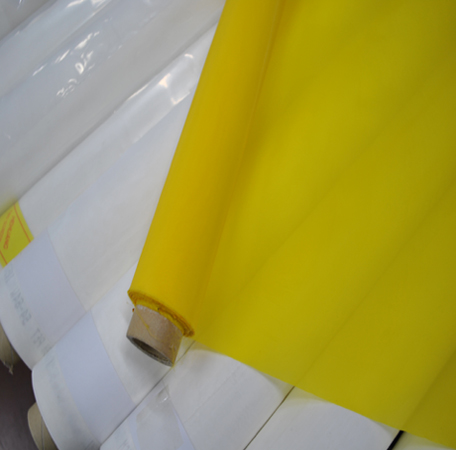

Polyester Screen Printing Mesh

Mesh Material : 100% polyester monofilament yarn
Mesh Feature : low-elongation and high tensile strength
Mesh Weave : Plain weave
Mesh Count    : 6T~165T mesh/cm
                         15~420 mesh/inch
Mesh Width     : 100-365cm
                          40-143inch
Mesh Color     : white yellow black
Mesh Stock     :1000-10000 square meter with commonly used
                         specification
Mesh Using     : Textile printing, garment printing, glass printing, PCB printing, filtered water(FDA), filtered powder, flour screen and other filtration industrial.

TS BOLTING CLOTH MANUFACTURER
100% Monofilament Polyester Bolting Cloth (Silk Screen Printing Mesh)
Model	Specification	Mesh count	Thread Diameter	Mesh opening	Open Area	Thickness	Theoretic Ink Volume
Model	(/cm)	(mesh/inch)	(um)	(um)	(%)	(um)	(cm3/m2)
PET 10-250	10	25	250	743	55	495	274
PET 12-140	12	30	140	686	68	277	189
PET 12-250	12	30	250	578	48	495	239
PET 14-200	14	36	200	489	50	340	169
PET 15-200	15	40	200	443	47	340	160
PET 16-140	16	40	140	461	58	238	139
PET 16-200	16	40	200	404	44	340	151
PET 16-250	16	40	250	356	34	425	145
PET 18-150	18	45	150	385	51	255	131
PET 18-180	18	45	180	357	44	306	134
PET 20-80	20	50	80	399	69	136	93
PET 20-100	20	50	100	380	62	170	105
PET 20-150	20	50	150	333	47	255	120
PET 20-180	20	50	180	304	39	306	120
PET 21-140	21	54	140	319	48	238	114
PET 22-80	22	56	80	356	66	136	90
PET 24-80	24	60	80	320	63	136	86
PET 24-100	24	60	100	301	56	170	95
PET 24-120	24	60	120	282	49	204	99
PET 24-140	24	60	140	263	42	238	100
PET 24-150	24	60	150	253	39	255	100
PET 28-80	28	70	80	263	58	136	79
PET 28-100	28	70	100	244	50	170	85
PET 29-120	29	74	120	214	41	204	83
PET 30-120	30	76	120	203	39	204	80
PET 32-64	32	80	64	236	61	109	67
PET 32-80	32	80	80	221	53	136	73
PET 32-100	32	80	100	202	44	170	75
PET 32-120	32	80	120	183	36	204	74
PET 34-100	34	86	100	184	42	170	71
PET 36-80	36	90	80	188	49	136	66
PET 36-90	36	90	90	178	44	153	67
PET 36-100	36	90	100	169	39	170	66
PET 39-55	39	99	55	191	60	94	56
PET 39-64	39	99	64	183	54	109	59
PET 39-71	39	99	71	176	50	121	61
PET 39-80	39	99	80	168	45	136	62
PET 39-100	39	99	100	149	35	170	60
PET 43-64	43	110	64	160	51	109	55
PET 43-80	43	110	80	145	41	136	56
PET 47-55	47	120	55	150	53	94	50
PET 47-64	47	120	64	141	47	109	51
PET 47-71	47	130	71	135	42	121	51
PET 51-55	51	130	55	134	50	94	47
PET 51-71	51	135	71	119	39	121	47
PET 53-55	53	135	55	127	48	94	45
PET 53-64	53	135	64	118	42	109	45
PET 53-71	53	135	71	112	37	121	45
PET 56-55	56	142	55	117	45	94	42
PET 56-64	56	142	64	109	38	109	41
PET 59-55	59	150	55	109	42	94	40
PET 59-64	59	150	64	100	36	109	39
PET 61-55	61	155	55	103	41	94	38
PET 61-64	61	155	64	95	34	109	37
PET 64-55	64	163	55	96	39	94	36
PET 64-64	64	163	64	88	32	109	35
PET 68-55	68	173	55	87	36	94	34
PET 68-64	68	173	64	79	29	109	32
PET 72-45	72	183	45	89	42	77	32
PET 72-48	72	183	48	86	40	82	32
PET 72-55	72	183	55	80	34	94	31
PET 77-55	77	195	55	71	31	94	29
PET 80-45	80	200	45	76	38	77	29
PET 80-48	80	200	48	73	35	82	29
PET 90-40	90	230	40	68	38	68	26
PET 90-45	90	230	45	63	33	77	25
PET 90-48	90	230	48	60	28	82	23
PET 100-40	100	250	40	51	30	85	26
PET 110-34	110	280	34	48	33	58	19
PET 110-40	110	280	40	43	26	68	18
PET 120-31	120	305	31	44	33	53	18
PET 120-34	120	300	34	42	29	58	17
PET 120-40	120	300	40	37	18	68	13
PET 130-40	130	330	40	31	17	68	12
PET 130-34	130	330	34	36	26	58	15
PET 140-31	140	350	31	34	25	53	13
PET 140-34	140	350	34	32	19	58	11
PET 150-27	150	380	27	34	30	46	14
PET 150-30	150	380	30	31	23	51	12
PET 150-34	150	380	34	28	16	58	9
PET 165-27	165	420	27	29	22	46	10
PET 165-31	165	420	31	25	16	53	8
Remark:The above are theoretic data for reference only.Thickness error range±5% ; Mesh Opening & Open Area & Theoretic Ink Volume only slight error according to actual data.
